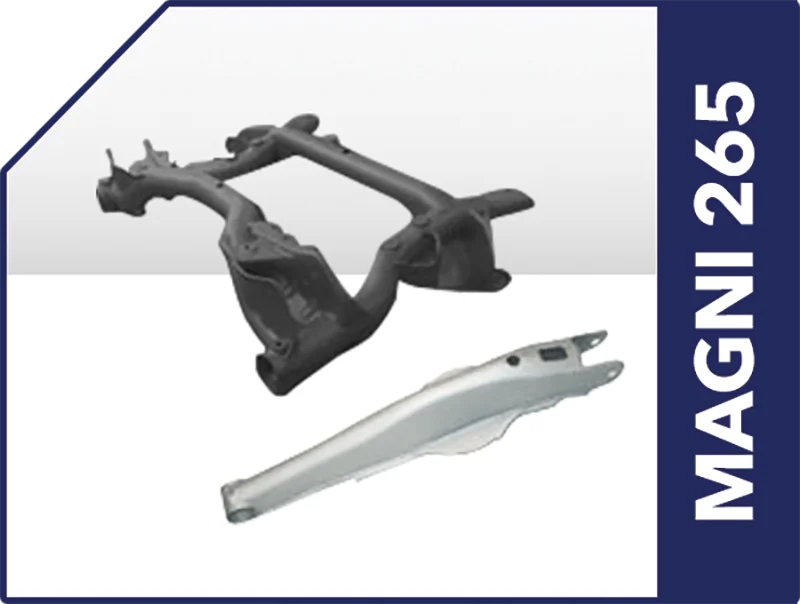

Magni 265 is a chrome-free duplex coating engineered for use on vehicle stampings and other structural components. Combining an inorganic zinc-rich base coat with a high-performance organic topcoat, Magni 265 delivers exceptional corrosion protection on the interior and exterior of these structural components.

Since it is applied after fabrication, Magni 265 provides excellent corrosion protection at the weld and heat-affect area. Unlike conventional e-coat, Magni 265 will provide extended field protection, often allowing for use of thinner-gauge steel and lighter-weight components.

• Applied via dip-drain or spray application methods
• Often eliminates the need for anti-chip coatings

Coating Thickness

10-15 microns (topcoat) over 10-15 microns (basecoat)

Color

Black, Silver

Cyclic Corrosion Resistance

BMW DYKO: TBD

Daimler MEKO: 8 cycles

GMW 14872 with 5 pints of gravel (per GMW 14700, method C): 100+ cycles

Porsche PPV4017: TBD

Toyota CCT-A: 50+ cycles

Salt Spray

ASTM B117: >2,000 hours

Alstom

DTRF 150611rev F1

BMW

GS 90011

Daimler

DBL 8440.20; 8440.60

Ford

ESGCP-1-1B332-AA

General Motors

GMW 14671 Type H

Porsche

PTL 7529

PSA

B15 3320

Volkswagen

TL233 Ofl-t350/t650; TL245 Ofl-t602
